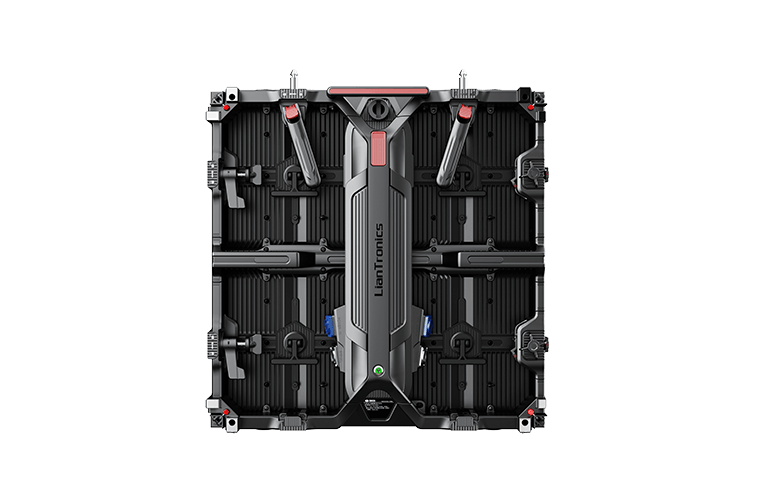

Série Pilot Pro

Pilot Pro Series Indoor Fine-Pitch Rental LED Display

1.Display LED high-end NPP para eventos, estágios xR, estúdios de produção virtuais, etc.\\r\\n 2.Operação com uma mão de bloqueio e bloqueios rápidos, reduzindo o trabalho pesado;\\r\\n 3.Bloqueio automático padronizado do arco: ±3°/0/±6°; Bloqueio automático opcional do arco: ±2.5°/0/±5°;\\r\\n 4.Suporte emenda curvada, em forma de L, escalonada vertical e horizontalmente, etc.

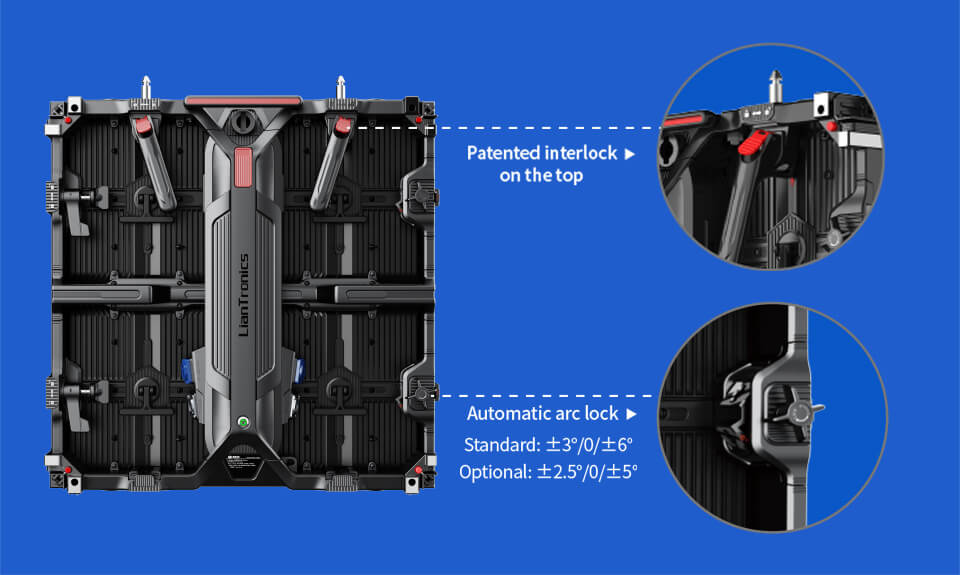

Protection for Players

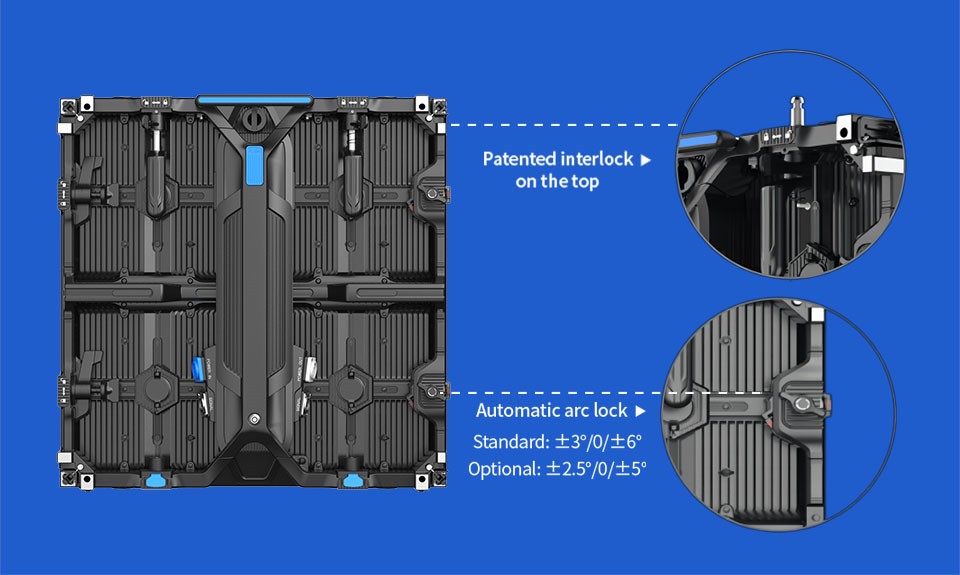

1s lock and go. Ultra-thin & light Pilot Pro features patented interlocks to enable speedy operation one-handed. Automatic arc lock allows a simple rotation to curve the LED wall quickly.

Emergency Access

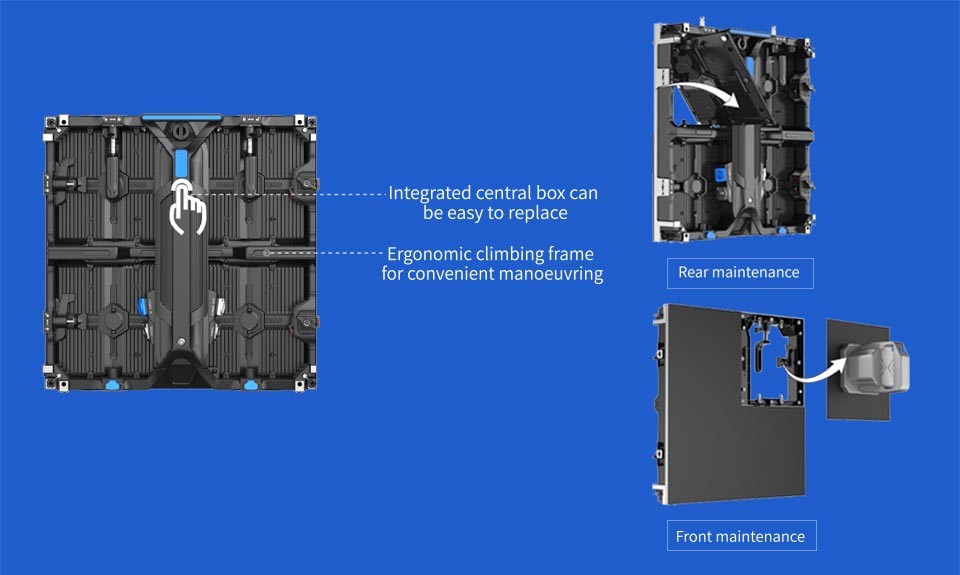

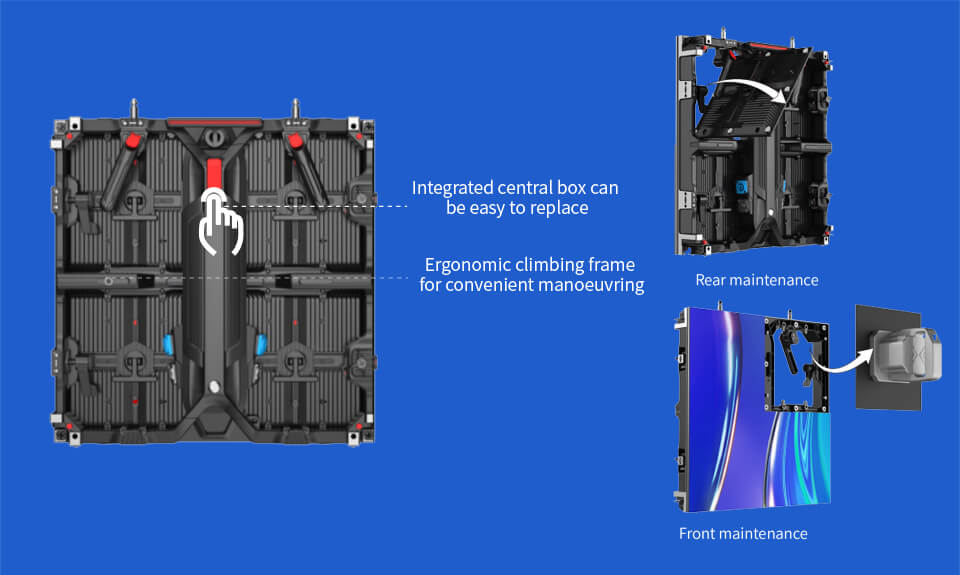

Module supports both front and rear maintenance. Integrated central box can be pressed and unlocked for friendly replacement. Ergonomic climbing frame supports high load bearing for easy in-service maintenance.

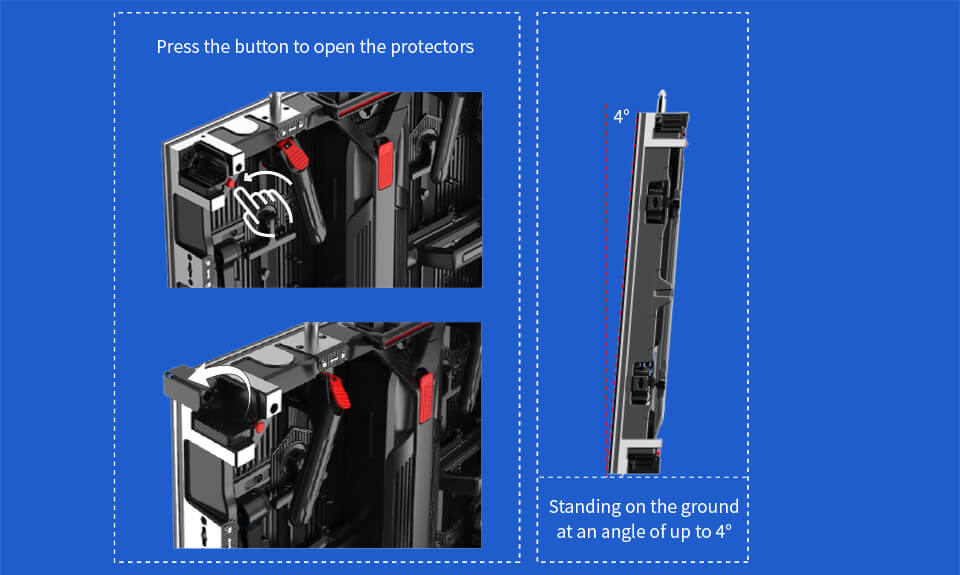

Ultra-High Potection

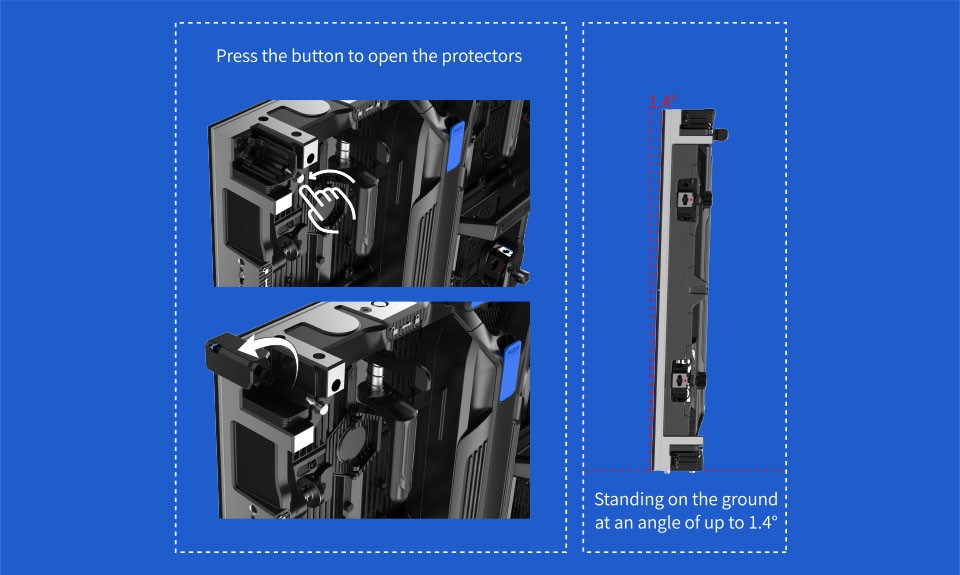

To protect lamps from damage, the LED panels feature one-press semi-automatic corner protectors and can stand on the ground at an angle. Besides, adopting extra gluing around the module improve anti-collision capacity and optional nano-coating craftsmanship efficiently resist moisture, dust, etc.

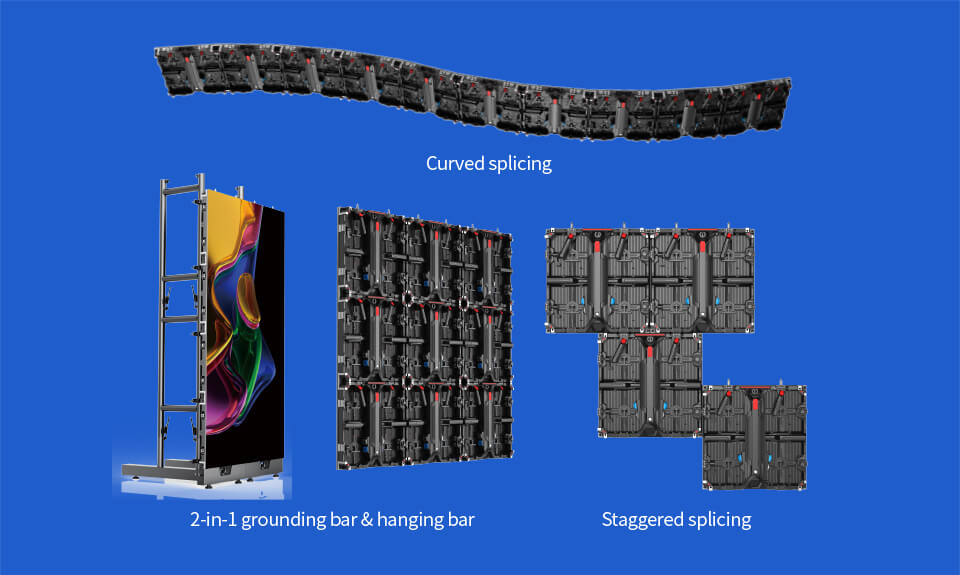

Shape Your LED Wall As You Want

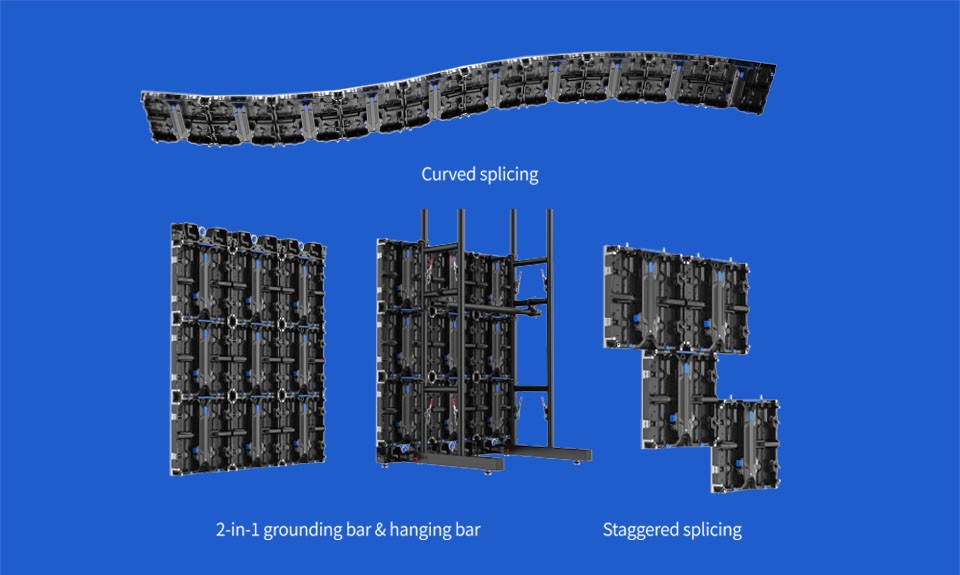

Pilot Pro adopts universal hanging bars and stacking bars. Moreover, Pilot Pro also enables curved, staggered and 90° splicing for more creative shapes.

Elaborate Module Design

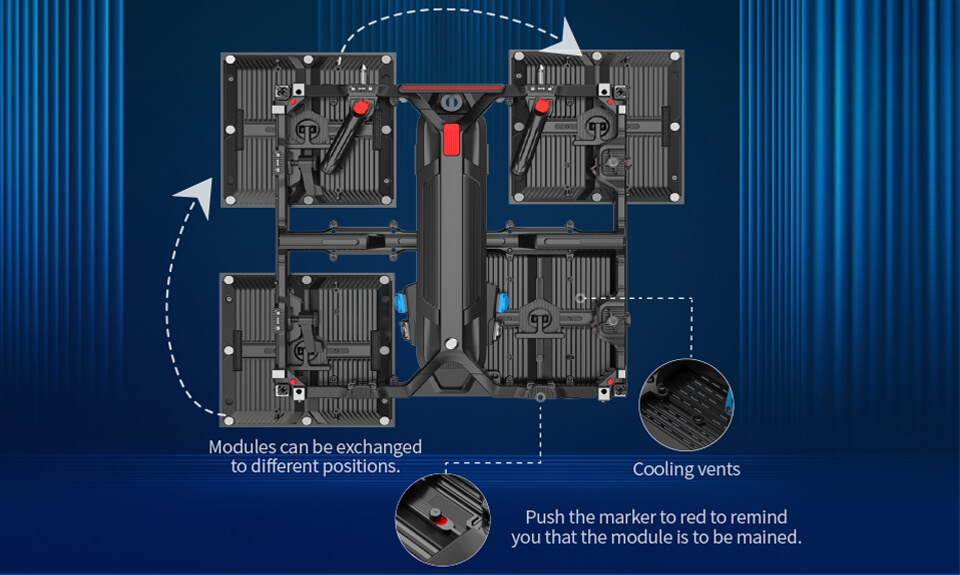

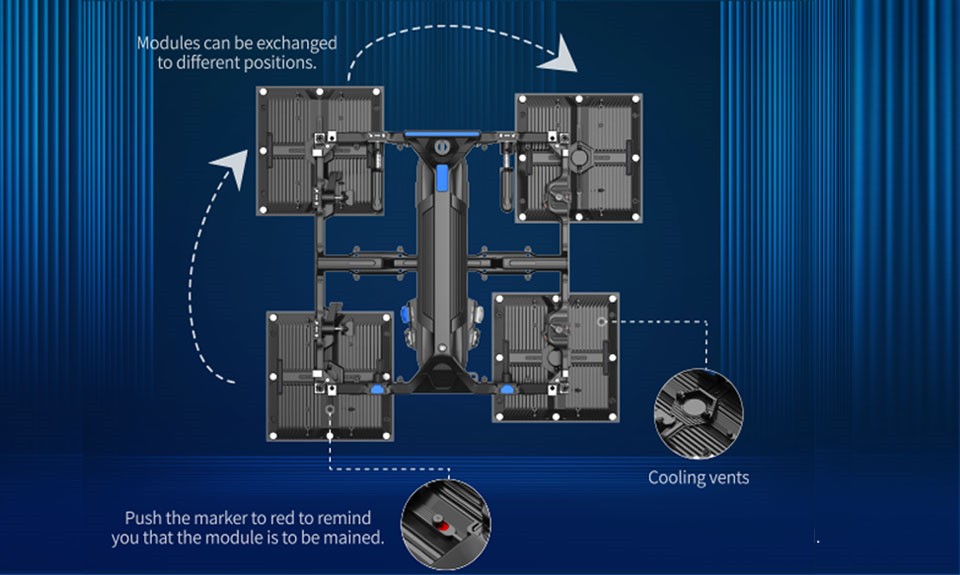

Universal modules can be magnetic or screw fixed for higher flexibility. What’s more, modules are designed with to-be-mained markers and distributed with cooling vents to dissipate heat efficiently.

Double Backup, Higher Integrated Stability

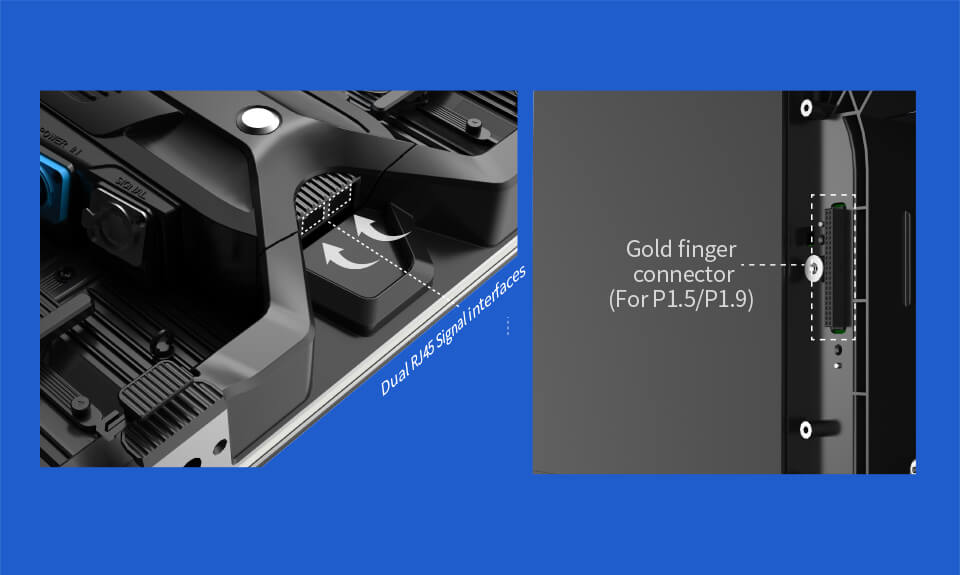

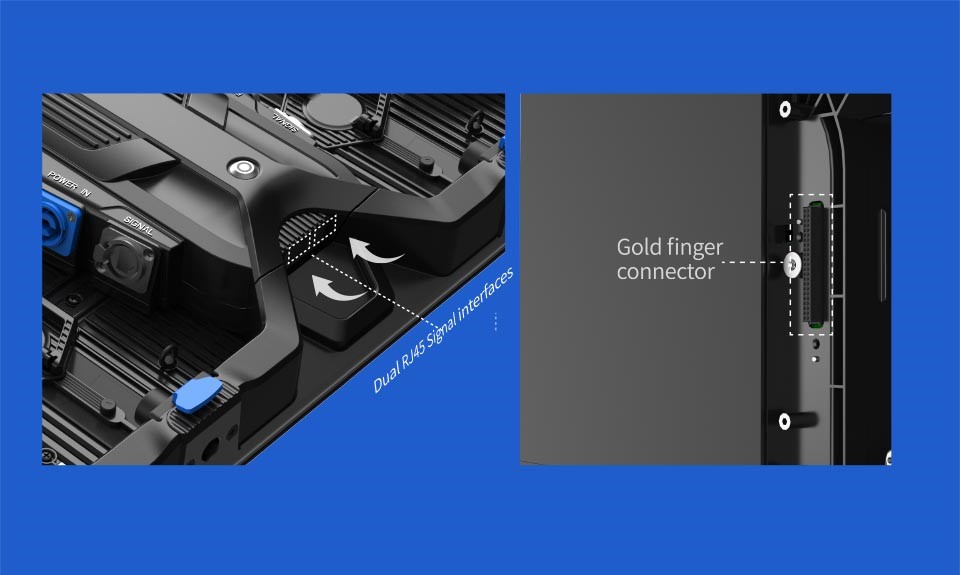

Dual signal interfaces prevent poor transmission due to signal interruption. Modules and huboard are connected with integrated gold finger connector for higher stability.

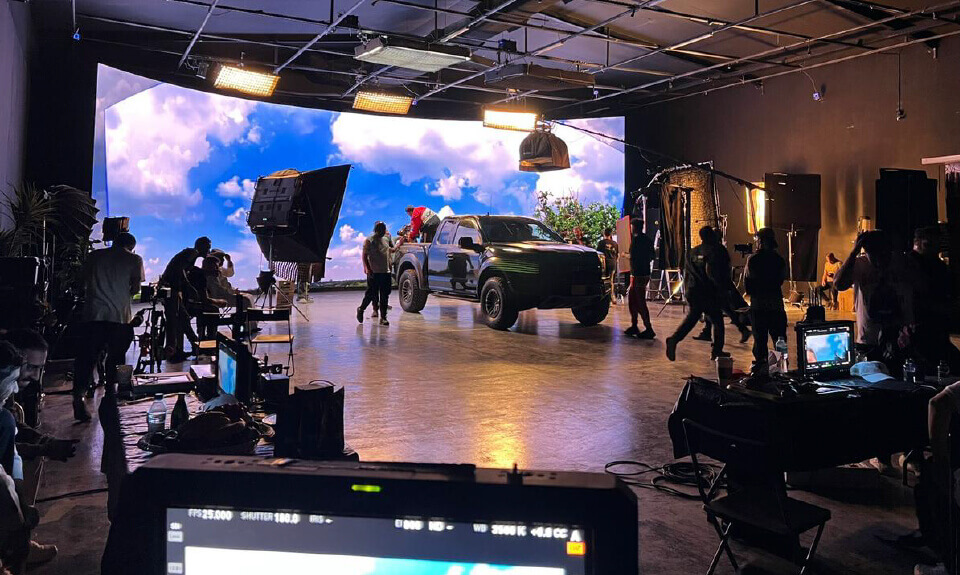

Excellent Display Performance for xR Application

Pilot Pro is optional with higher refresh rate, higher frame rate & higher grayscale to deliver exceptional visuals for application in virtual production, xR and film studios.

Parâmetro

Modelo	Pilot Pro1.5 (XR)	Pilot Pro1.9 (XR)	Pilot Pro2.6	Pilot Pro2.9	Pilot Pro3.9
Tom de pixel (mm)	1.5	1.9	2.6	2.9	3.9
Tamanho do painel (mm)	500*500	500*500	500*500	500*500	500*500
Resolução do painel (pixels)	320*320	256*256	192*192	168*168	128*128
Material de gabinete	Caixa de alumínio fundido	Caixa de alumínio fundido	Caixa de alumínio fundido	Caixa de alumínio fundido	Caixa de alumínio fundido
Peso do painel (Kg/pc)	8	8	8	8	8
Brilho (Nits)	1000-1500	1000-1500	900-1500	900-1000	900-1000
Manutenção	Atrás	Atrás	Atrás	Atrás	Atrás
